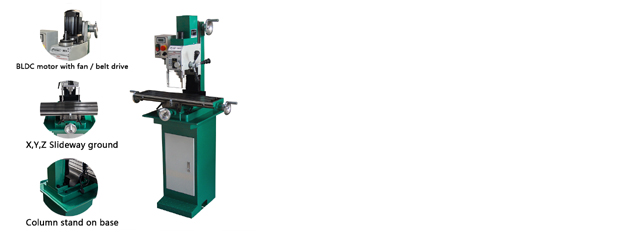

TM25V

Features:

1.  R8 / MT3 spindle taper, so it use most commonly available tooling

2.  DC BRUSHLESS variable speed motor, powerful, smooth and reliable

3.  Belt drive from motor to spindle runs MUCH quieter than others,

and eliminates any failure prone plastic gear

4.  H/L double speed pulley

5.  Main column is stand on base with 4 bolts from the top, with a wide

mounting surface from much more rigidity over other models in the size range

6.  3 Bolt Head Mount is now standard, for more rigidity when milling

7.  Precision leadscrew make it easier to cut accurately

8.  3 axis guide way ground

9.  work table is 700 x 180mm

10.  motor: 1Hp single phase 10Amps

11. Quill DRO is Standard, Accuracy of the Display 0.015, Selectable from mm/inch

Specifications:               inch                 metric

Drill capacity                           1"                                       25mm

Face mill capacity                        2 1/2"                           63mm

End mill capacity                                3/4"                                      20mm

Motor                                    1Hp, single-phase

Spindle taper                              R-8                            MT3

Spindle travel                              2"                                          52mm

T-slots                           3 @ 2-1/2" centers, 1/2" wide             12mm

Head travel                                 11"                                          275mm

Head tilt                                 90° L/R                                  90° L/R

Max. distance spindle to table          13"                                         330mm

Swing                                        15"                                          380mm

Table travel (longitudinal)              18-7/8"                                   490mm

Table travel (cross)                      6-7/8"                                     170mm

Table size                           7-1/16" x 26-5/8"                            700x180mm

Spindle Speed                                  50–3000 RPM
