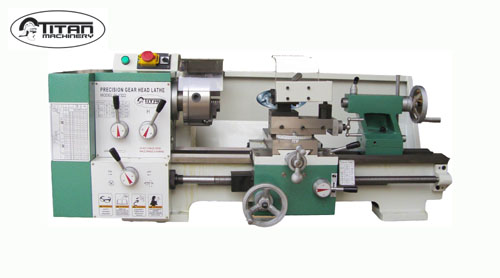

METAL LATHE TL330 330 x 600mm B/C

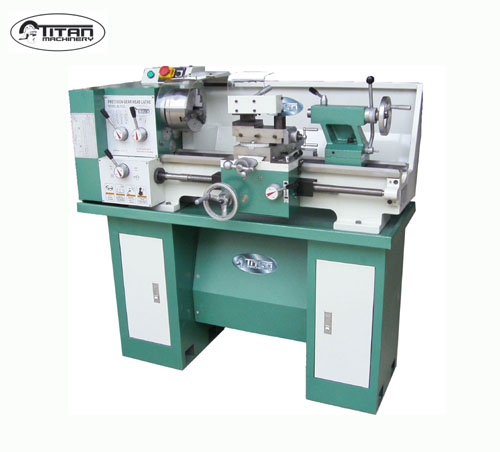

titan TL330 bench lathe

FINALLY AN AFFORDABLE LATHE WITH ALL THE STANDARD ACCESORIES OF A BIGGER LATHE.

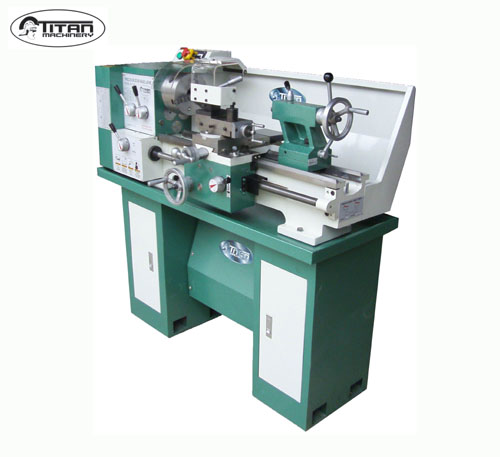

THE TL330 COMES STANDARD WITH CABINET STAND & DRIP TRAY ,LONGTITUDE & CROSS FEED,HARDENED AND PRECISION GROUND DOUBLE 'V' BED(OTHER SUPPLIERS OF THIS STYLE OF LATHE ARE NOT DOUBLE 'V') ALSO HAS A COMBINED LEADSCREW FEED SHAFT BY HAVING

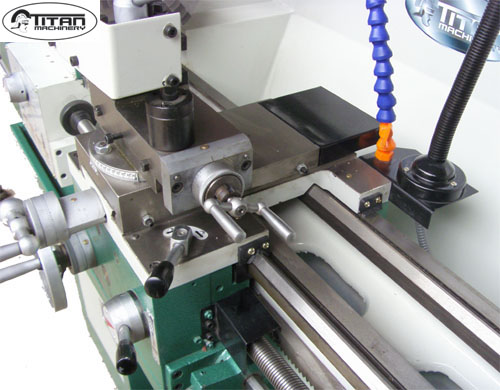

A KEYED LEADSCREW YOU CAN ELIMINATE THE NEED OF 2 SEPERATE SHAFTS AS THE KEY DRIVES THE GEARS IN THE CARRIAGE LEAVING THE THREADS AND HALF NUT FOR THREAD CUTTING ONLY(VERY NEAT IDEA!)

PERFECT LATHE FOR THE
SMALL WORKSHOP,REPAIR SHOP WHERE SPACE IS LIMITED

CHECK OUT THE SPECS!!

picture gallery

FEATURES

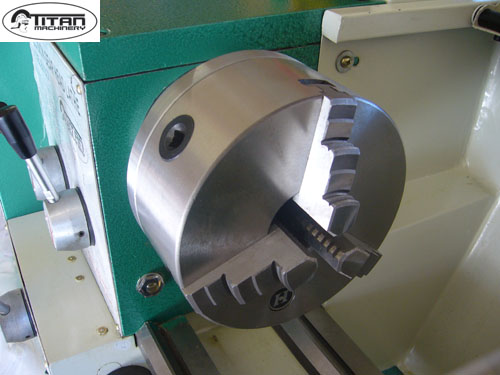

160mm 3-jaw chuck
200mm 4-jaw chuck
Fixed & Traveling steadies

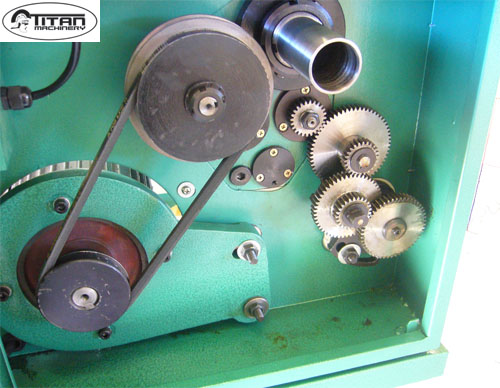

Change gears
Thread Dial
MT#5 Dead centre
MT#3 Dead cenre
Oil gun
Toolbox with tools

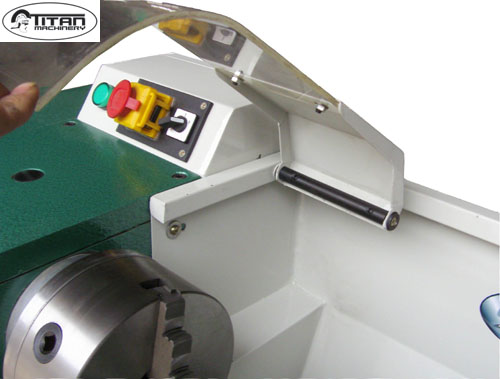

Eye shield
Quick change gearbox
Forward / reverse switch with emergency stop
Operators manual
CE Approved

machine specifications

Swing: 330mm
Swing over saddle: 210mm
Distance between centres: 600mm
Bed width:165mm
Lathe spindle bore: 38mm
Spindle taper (lathe): MT#5

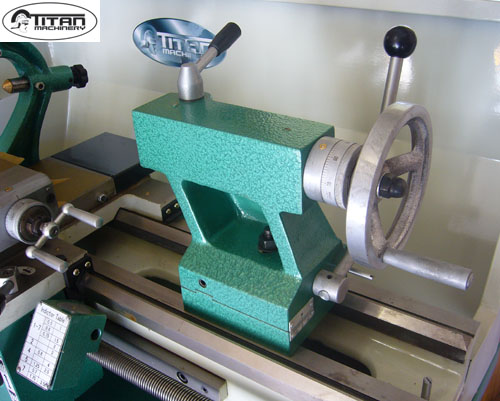

Tailstock taper: MT#3
Tailstock barrel travel: 80mm
Carriage travel:500mm
Cross slide travel: 165mm
Compound travel: 105mm
Toolpost: 4 Way
Number of speeds:12 0-1650rpm
Range of feeds(Long) :0.067-1.019mm/r
Range of feeds(Cross):0.018-0.275mm/r
Range of threads (inches): 20/40-9T.P.I
Range of threads (metric): 17/0.45-10mm
Lathe motor size: 1.1kw ,1 Phase, 240V 50hrtz
Shipping Size: 1350 x 770 x 700mm
N/W,G/W : 340/380kg
