METAL LATHE TL210V 210 x 400mm B/C

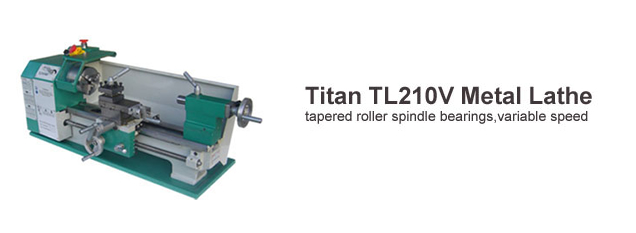

titan tl210v mini lathe
The new Titan TL210V is the next step up from a mini lathe .It has a hardened and precision ground Bed ,Taper roller spindle bearings ,Variable speed DC motor And the ability to cut both metric and inch threads. This is one super smooth machine that’s not to big but not to small.

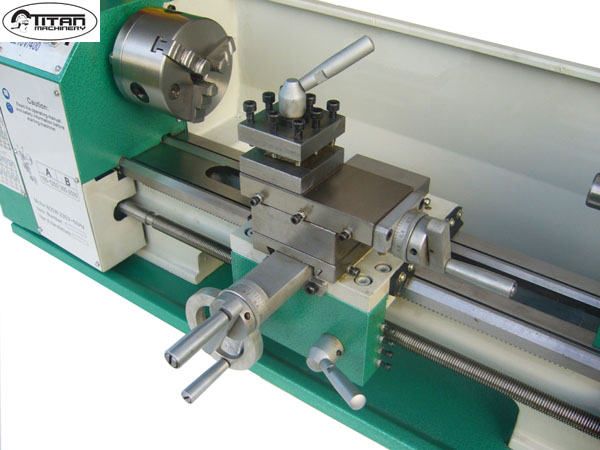

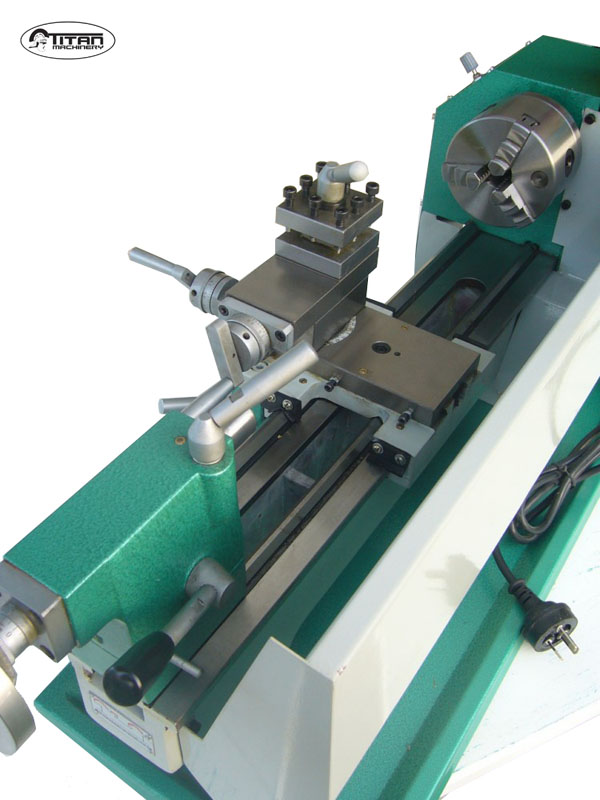

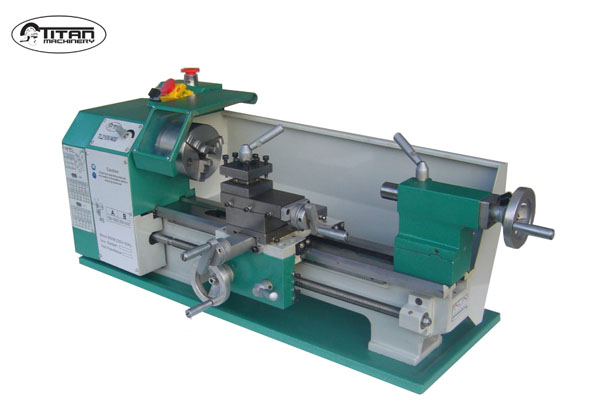

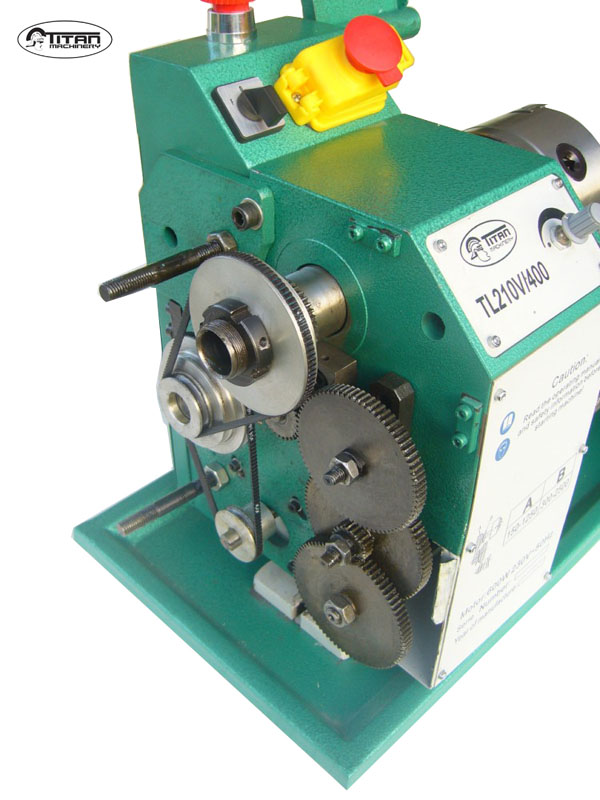

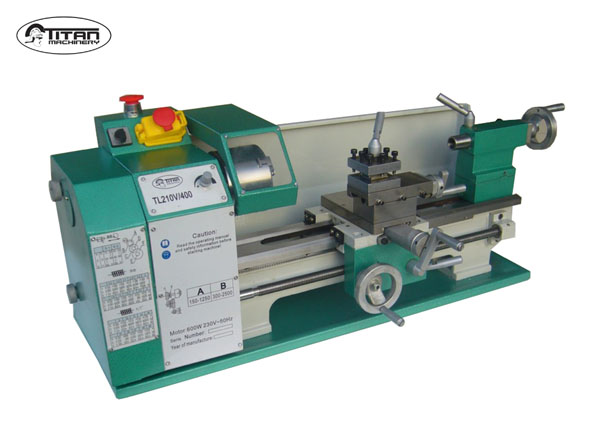

picture gallery
Standard Accessories
- 3 Jaw 100mm chuck self centering with reverse jaws
- 4 Jaw 100mm independant chuck
- MT3 Dead Centre
- MT2 Live Centre
- Drill Chuck
- Forward / reverse switch with emergency stop
machine specs
- Swing: 210mm
- Swing over saddle: 115mm
- Distance between centers: 400mm
- Lathe spindle bore: 21mm
- Spindle taper (lathe): MT3
- Tailstock taper: MT2
- Tailstock barrel travel: 60mm
- Bed Width:100mm
- Cross slide travel: 75mm
- Compound slide travel:55mm
- Carriage travel: 315mm
- Range of threads : 0.089mm, 0.147mm,0.198mm
- Metric screw: 0.3 - 3mm/15 kinds
- Inch screw: 8-44TPI/12 kinds
- Lathe motor size: 600W, 240V , 50hrtz ,single Phase
- Spindle RPM: 50-2500 rpm 9 Steps
- Approximate shipping dimensions:86x47x47cm
- Approximate shipping weight:75kg
opional accessories
- Fixed & Traveling steadies
- Face Plate
