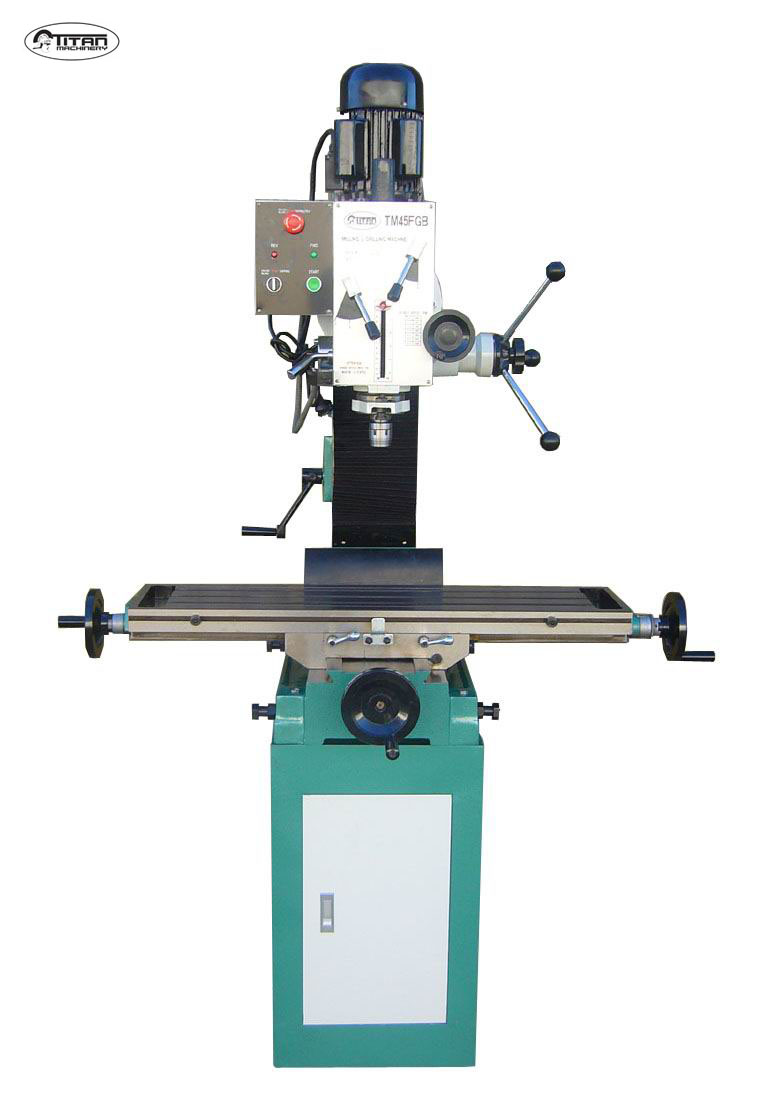

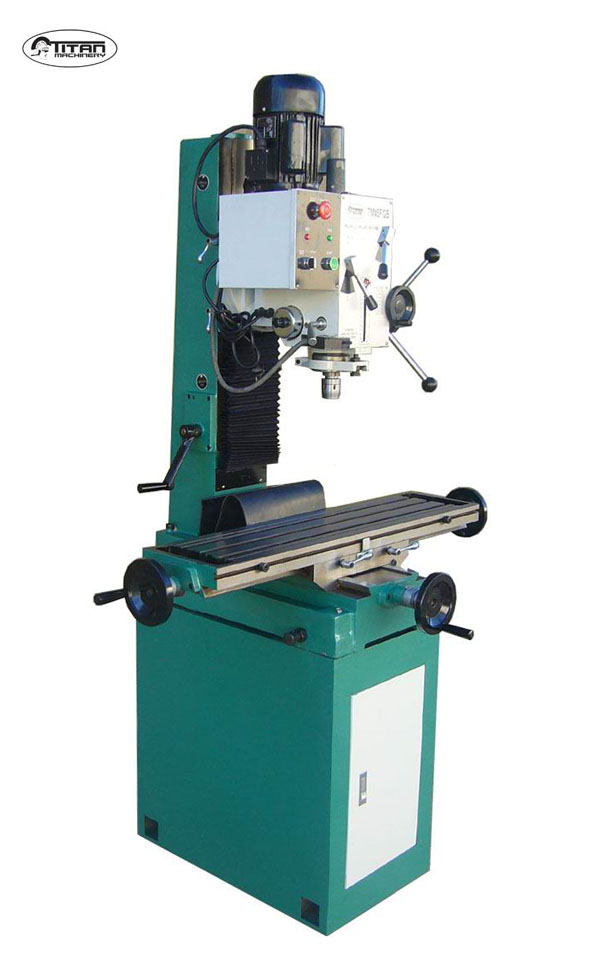

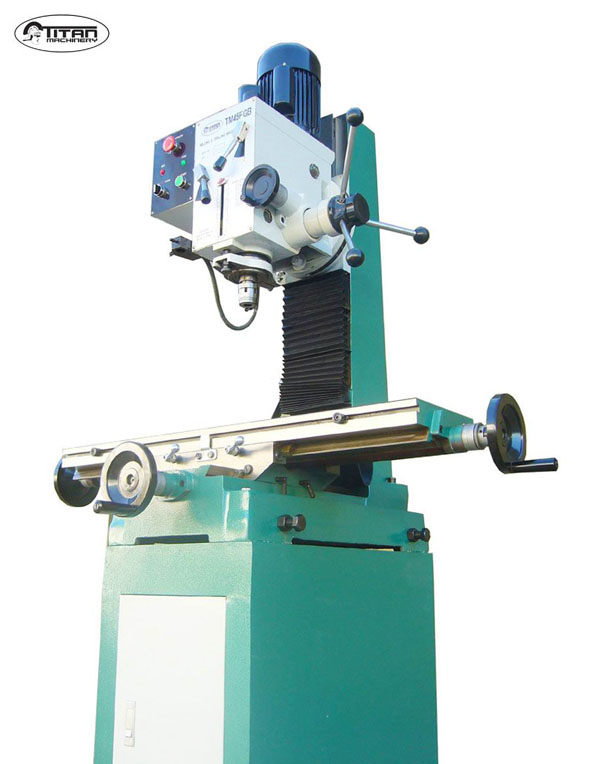

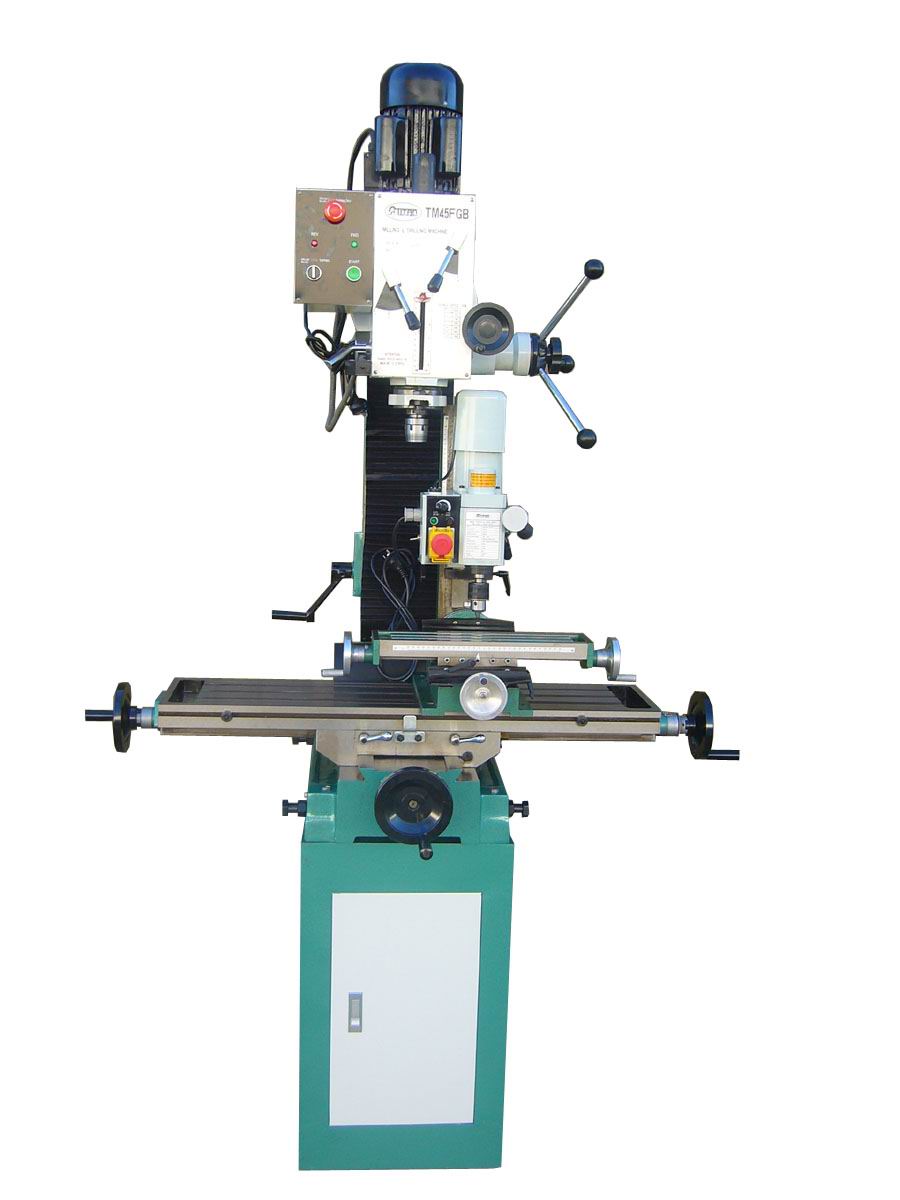

MILLING/DRILLING MACHINE TM45FGB
titan tm45fgb milling machine

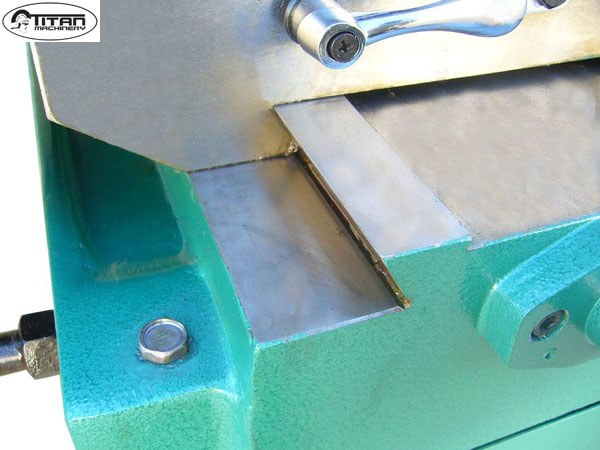

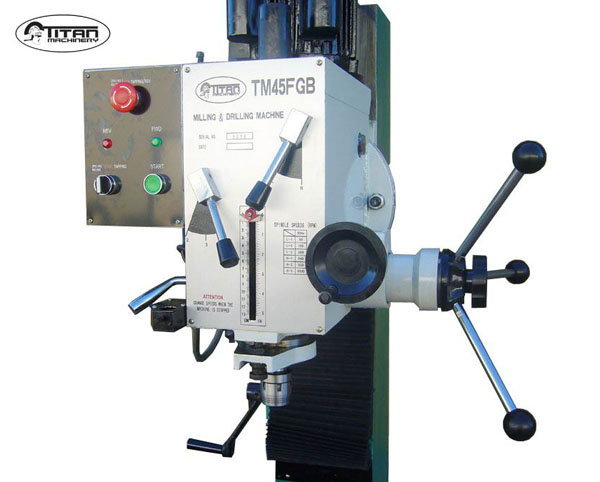

Our new TM45FGB is all new with precision ground dovetail Slidways for accuracy, quick speed changes with the oil bath metal geared head(now with true 50hrtz 1600rpm other machine on market are 60hrtz stated speeds), tilting head for angled cutting, drilling or tapping and so much more. Take a close look at the capacities and standard accessories of this machine! Now with BIG FLANGE HEAD!!! BIG TABLE!!!! BIG TRAVEL!!!!
You won't believe this price after you've read the specs , features and included accessories on this machine features!
picture gallery
features
- Tapping switch (For Reversing)
- Manual feed reverse
- Eye shield
- Quill lock
- 45mm drilling capacity
- 80mm milling capacity
- 28mm end mill capacity
- 14mm tapping capacity
- Direct drive
machine specifications
- Drilling capacity: 45mm
- Face milling capacity: 80mm
- End milling capacity: 32mm
- Spindle taper: R-8
- Spindle travel: 130mm
- Quill diameter: 115mm

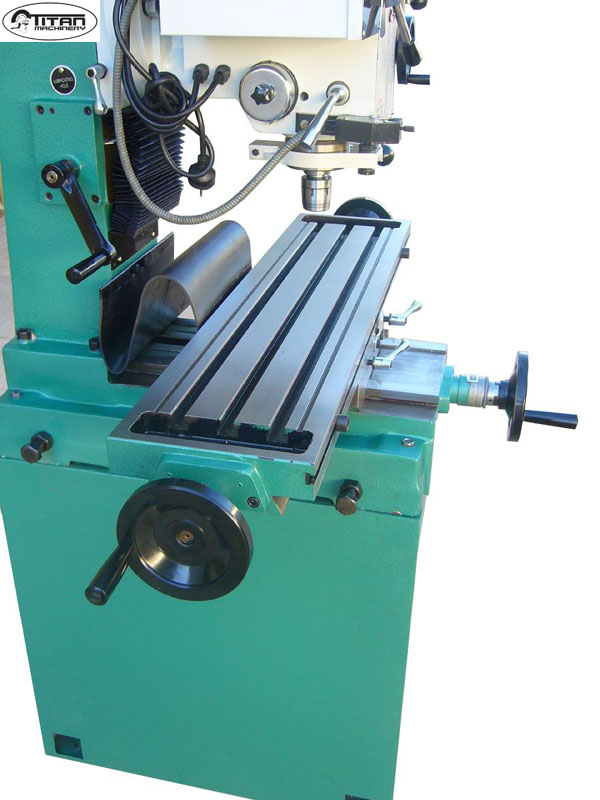

- Table size: 240mm x 1000mm MASSIVE!!!
- Table width end to end (tip of handwheel to tip of handwheel): 1162mm
- Table travel (longitudinal): 700mm
- Table travel (cross): 295mm
- Max. dist. spindle to table: 550mm
- Max. dist. spindle to column: 266mm
- Machine depth (back of column to tip of front handwheel): 820mm
- Machine height : 1060mm
- Machine height incl stand : 1760mm

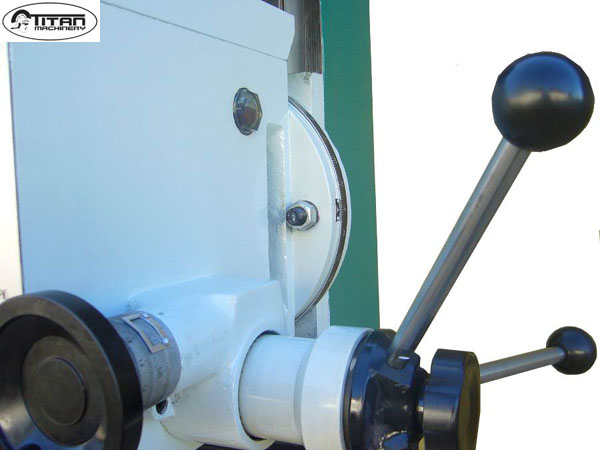

- Head tilt: 90º both ways
- Head swivel: 360º
- T-slots: 3 slots, 12mm studs
- Range of 6 speeds: 95-1600 RPM
- Motor: 1.5 kw, single-phase, 220V
- Approx shipping weight : 480kg
- Approx shipping size : 980x890x180cm (inc stand)
standard accessories
- 125mm machine vice
- 8pc collet chuck set
- Keyless drill chuck 1-13mm
- Stand
- 58pc clamp set
- Face cutter
