- TM330/915M
Description

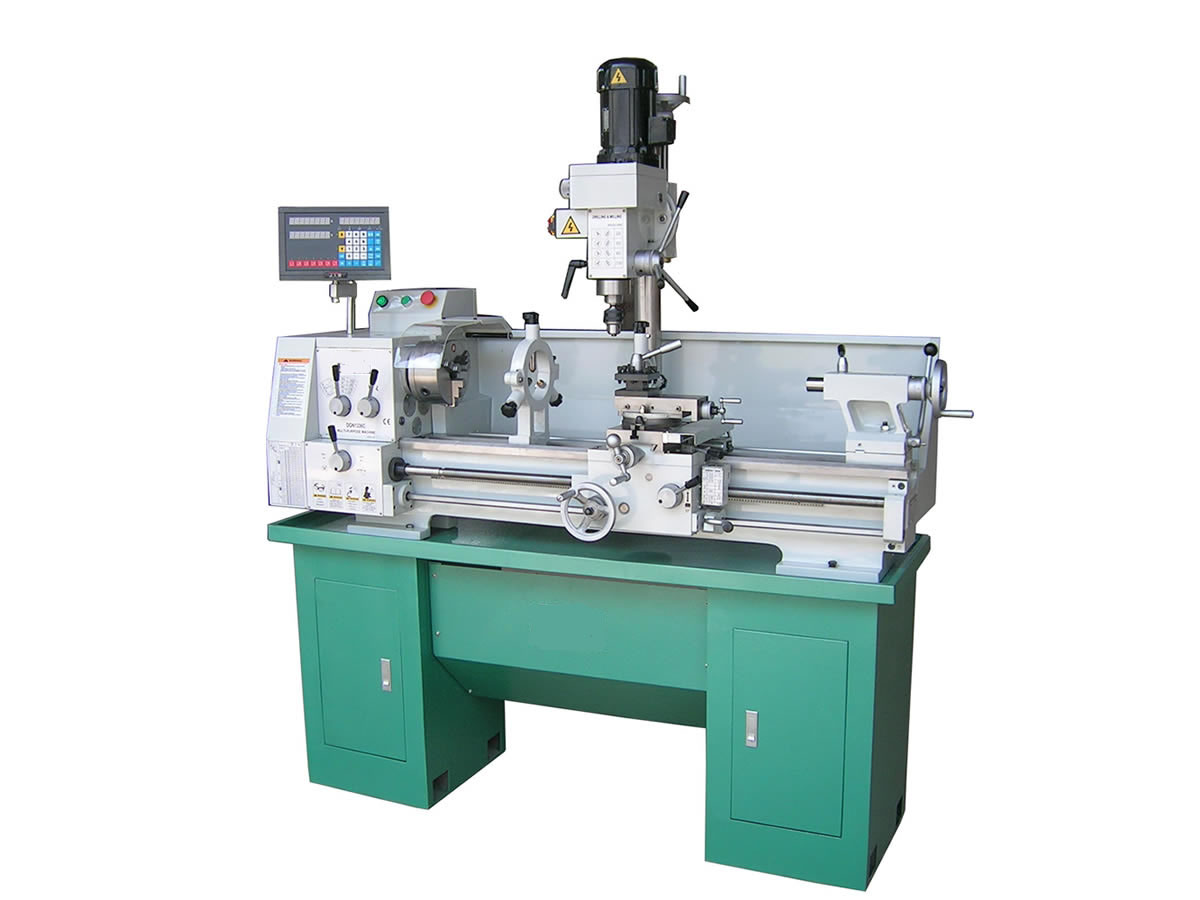

Whether you need to mill or turn, this fully featured machine can do it all for you! Both the mill and lathe have gear-head speed control. You can quickly flip levers to the needed spindle speeds for just about any combination of cutters and material. It features power cross and longitudinal lever control as well as an apron lock. Inch threading is also a snap with the thread chasing dial. The cross slide table has T-slots for mounting vises or clamping your work piece directly and the milling head has the extra advantage of tilting left or right up to 90°! This machine is supplied with all the standard equipment any hobbyist or machine shop could need.
- Features and Specifications Max. Swing over bed 330mm
- Max. Length of work piece 750mm/915 mm
- Max. Swing diameter over tool post 180mm
- Spindle Bore 38mm
- Spindle Taper MT.5#
- Max Lateral Stroke over tool post 140mm
- Max Longitudinal stroke over tool post 100mm
- Metric Thread kinds on processing 17
- Inch Thread kinds on processing 24
- Metric thread pitch on processing 0.5-4 mm
- Inch thread pitch on processing 9-40 1/n”
- Longitudinal–feed on spindle tool post 0.1-1.396mm/r
- Max. Stroke of tail stock sleeve 70mm
- Tail stock sleeve taper MT.3#
- Spindle speeds available 12
- Spindle speeds range 60-1650mm/r
- Lathe Electromotor 1.1kw
- Max. Drilling capacity 16mm
- Taper of hole in spindle MT.3# /R8
- Spindle speed step 4
- Spindle speeds range 220-2150mm/r
- Drill/Mill Electromotor 0.55kw
- Net weight/Gross weight 470KGS/520KGS 500KGS/550 KGS
- Full size 145cm×65cm×110 cm
162 cm×65cm×110cm - Outer packing size 155cm×77cm×116 cm
175cm×77cm×116 cm
