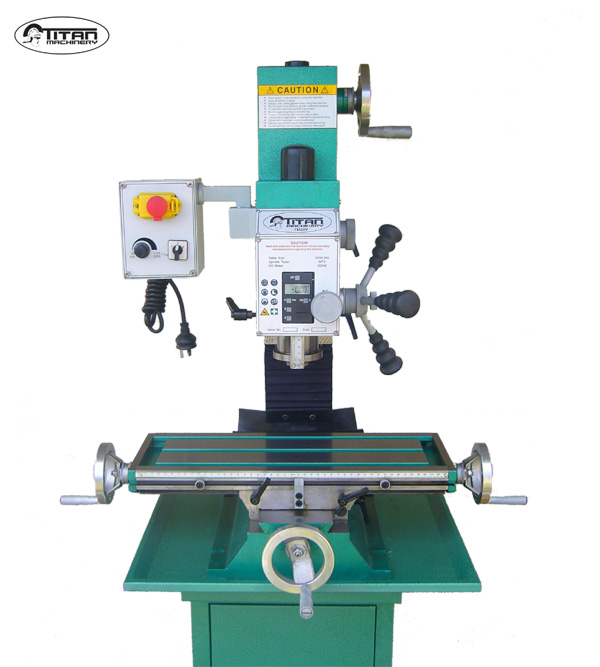

MILLING DRILLING MACHINE TM20V
titan tm20v milling machine
These TM20V mills could possibly be the best quality small hobby milling machine we have seen here at Titan Machinery.It has a variable speed DC motor that is controlled by a KB pc board(made in U.S.A).

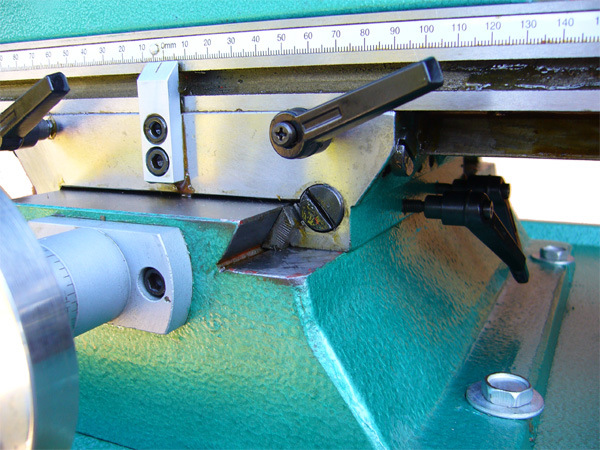

Another sign of quality is hand scraped slideways and adjustable tapered gibs not tiny adjustment screws(Tapered gibs are a must for a rigid machine!).
No plastic handles on this mill only satin finished alloy,digital depth guage and also self ejecting draw bar(no more whackng to get tool out)
This would make a exellent shrine for someones workshop or you could even press it into hard labour to make offerings to the engineering gods!.
NOW with MT3 spindles Taper and METAL GEARS INSIDE THE HEAD not standard plastic
Note: Stand not inluded. stand is optional accesory $229
Note: Stand not inluded. stand is optional accesory $229
picture gallery
FEATURES
-
Eye shield
-
Quill locks
-
Table locks
-
Digital Depth guage
-
16mm drilling capacity
-
16mm end mill capacity
-
50mm face mill capacity
-
Box section colum
-
Reversing switch
- High/low speed
- Fine down feed
machine specifications
-
Spindle taper: MT3
-
Spindle travel: 50mm
-
Quill diameter: 60mm
-

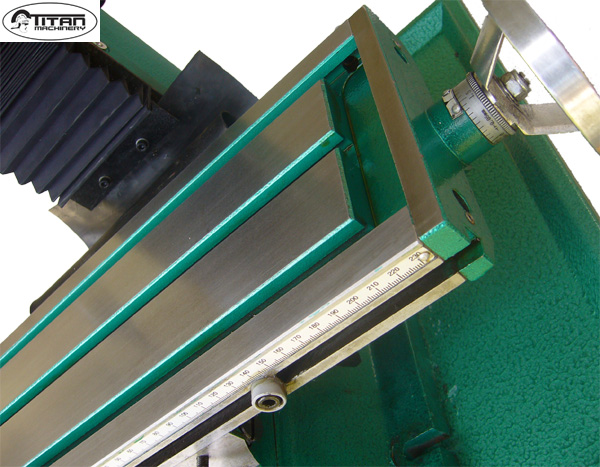

Table size: 500mm x 180mm
-
Table travel (longitudinal): 350mm
-
Table travel (cross): 160mm
-
Max. dist. spindle to table: 360mm
-
Max. dist. spindle to column: 185mm
-
Machine depth : 580mm(to front handle)
-
Machine height : 930mm(head fully extended)
-
Machine height incl stand : 1730mm
-
Head tilt: 90º both ways
-
T-slots: 3 slots, 10mm studs
-
Range of speeds: 0-2250 RPM
-
Motor: 600 W DC, single-phase, 220V AC Power supply
-
Approx shipping weight : 140kg
-
Approx shipping size : 50x50x76cm (excluding stand)
standard accessories
- Tool Box
- Metal gearbox gears
- Spanners,oil bottle,allen keys
- Drill chuck 1-13mm
