METAL LATHE TL360A 360 x 1000mm B/C

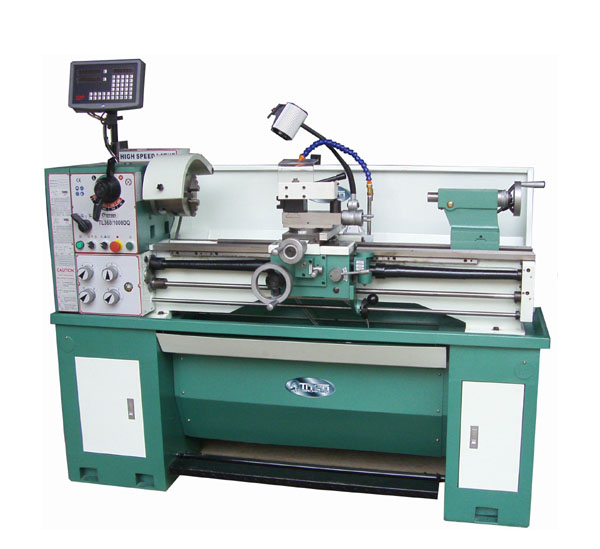

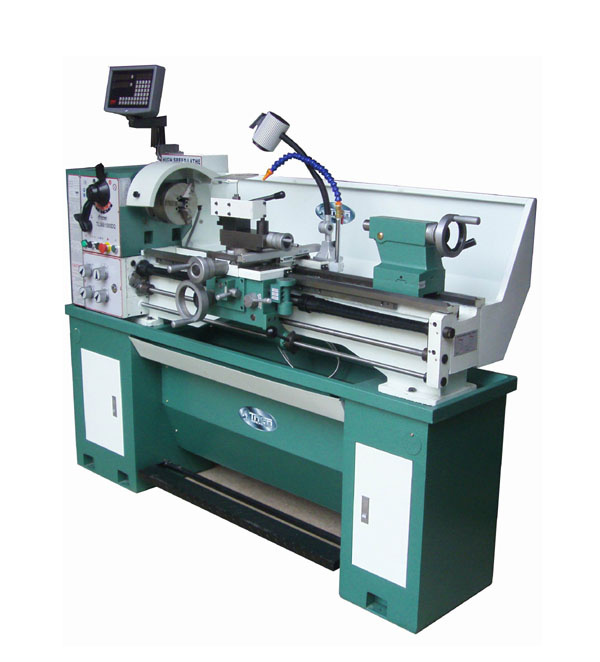

Titan TL360A Center Lathe
TL360A with has dozens of heavy weight features for a reasonable price. Driven by a powerful 2 HP, 240V motor, this metal monster will tackle the toughest machining jobs with ease. D1-4 cam-lock spindle is the most reliable and accurate chuck and plate mounting system for lathes.
Add an extra long foot brake and apron mounted switch control and you have precise, safe control when threading or working up close to those difficult shoulders. The Gear-head makes speed and feed changes fast and a pleasure to work with.
There are no weak plastic covers or guards on this lathe all metal gear covers and metal handles for durabilty.
Features like these will save you time and provide a wider margin of safety.Also this model comes with factory fitted DRO or and quick change toolpost for even more versatility!

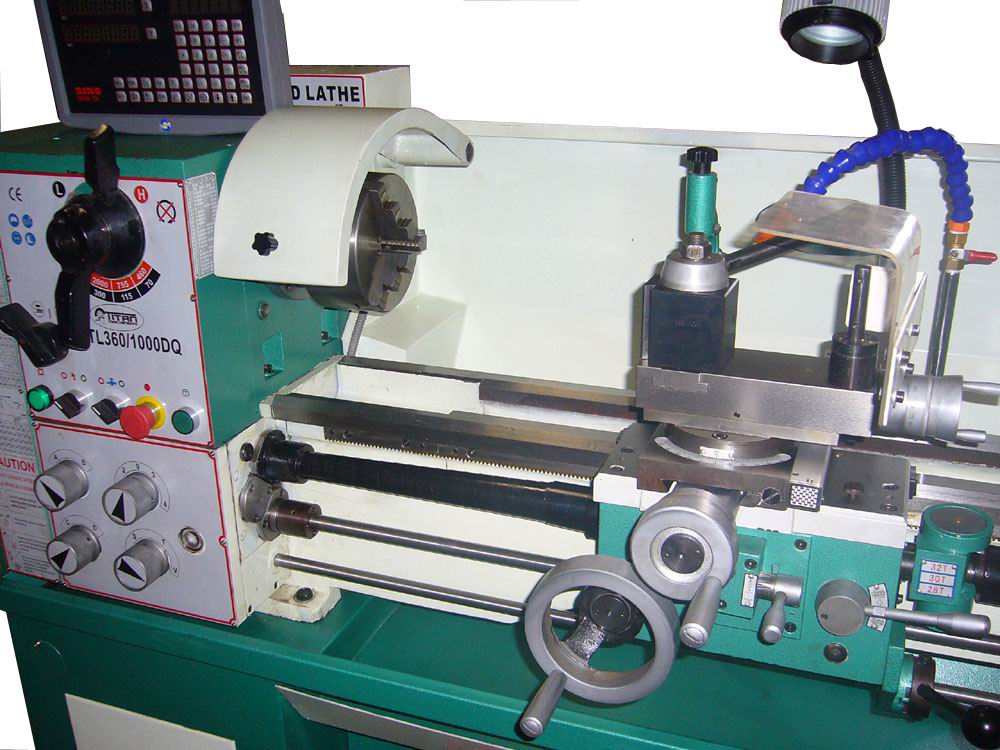

picture gallery
Standard Accessories
- 160mm 3-jaw chuck with two sets of jaws
- 200mm 4-jaw chuck with reversible jaws
- 250mm face plate

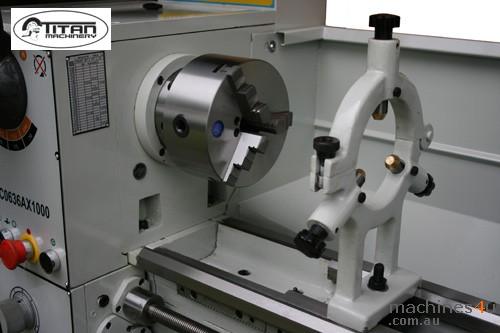

- Steady rest
- Follow rest
- Foot Brake
- DRO(Digital Read Out)

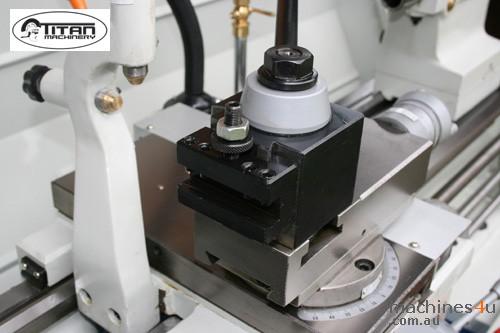

- Quick change tool post and tool holders
- Stand and splash guards
- Tool Box
- Work lamp
- Built in coolant system
- 2 Dead center MT3
- MT5-MT3 adapter
- Set of six change gears
- Removable gap bed allows turnings up to 523mm diameter
- Nine spindle speeds - ranging from 70 to 2000RPM

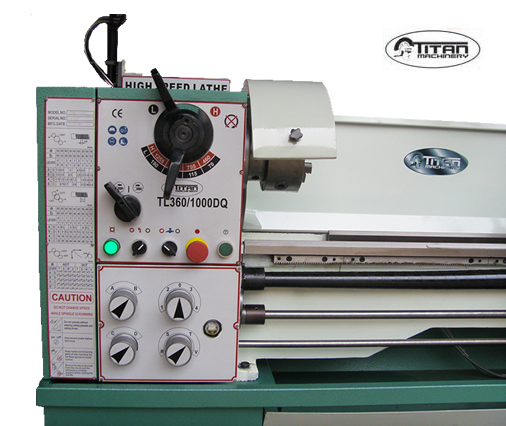

- Easy-to-use lever controls
- Hardened and ground cast iron bed
- Full length splash guard
machine specifications
- Swing: 358mm
- Swing over gap: 502mm
- Swing over saddle: 223mm
- Distance between centers: 1000mm
- Lathe spindle bore: 38mm
- Spindle taper : MT5
- Tailstock taper: MT3
- Tailstock barrel travel: 110mm
- Saddle feed range: 40 @ 0.052-1.392
- Cross feed range: 40 @ 0.014-0.3448
- Cross slide travel: 160mm
- Compound travel: 95mm
- Number of speeds: 8 steps
- Lathe speed range: 70-2000 rpm
- Range of threads (inches): 32 @ 4 TPI - 56 TPI
- Range of threads (metric): 32 @ .4 - 7.0mm
- Lathe motor size (Single-phase, 240V): 1.5KW
- Motor RPM: 1720 rpm
- Approximate shipping dimensions: 193x76x152cm
- Approximate shipping weight: 695kg
