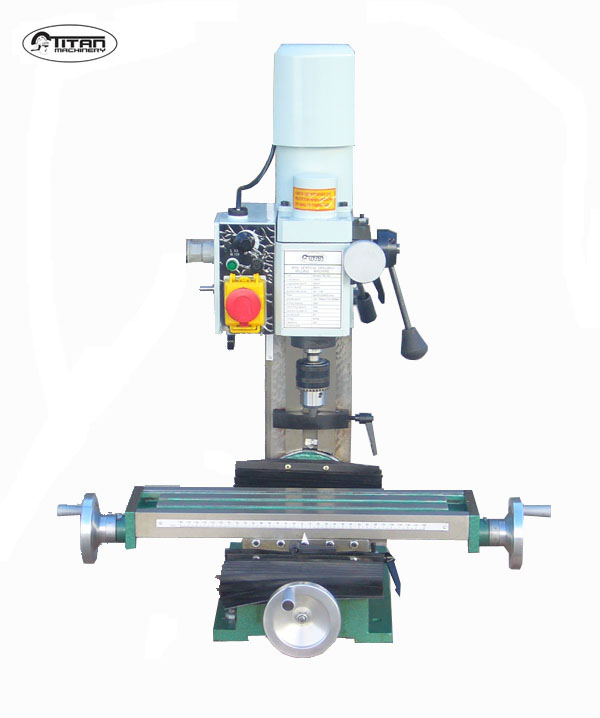

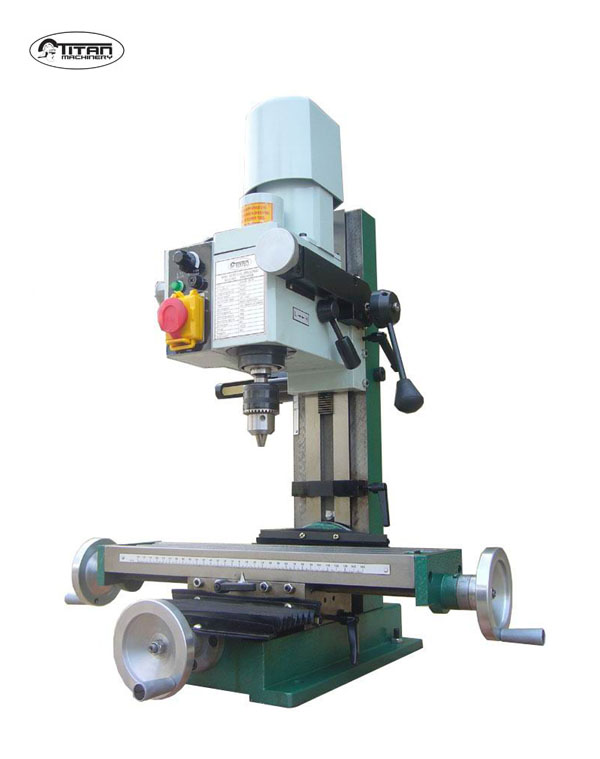

MINI MILLING DRILLING MACHINE TM16V

titan tm16v milling machine

The TM16V mill drill is a great entry level machine .Comes with variable speed spindle with high /low speeds gearbox also model comes with forward and reverse switch alot of other small mill/drills do not have this feature! Would make a great companion alongside our TL180V mini Lathe.

picture gallery

features

• Eye shield
• Quill lock

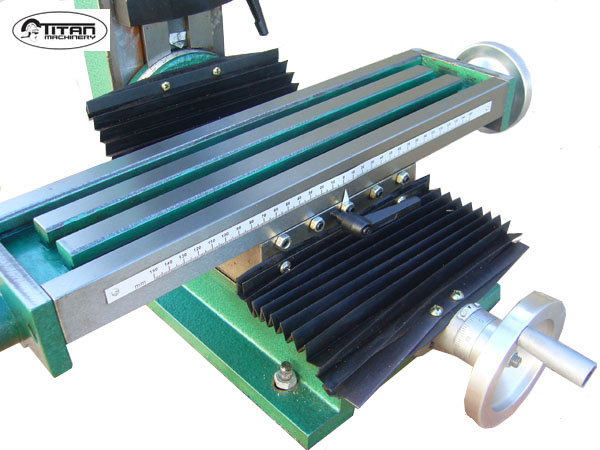

• Table locks
• 13mm drilling capacity
• 16mm end mill capacity
• 40mm face mill capacity
• Box section colum

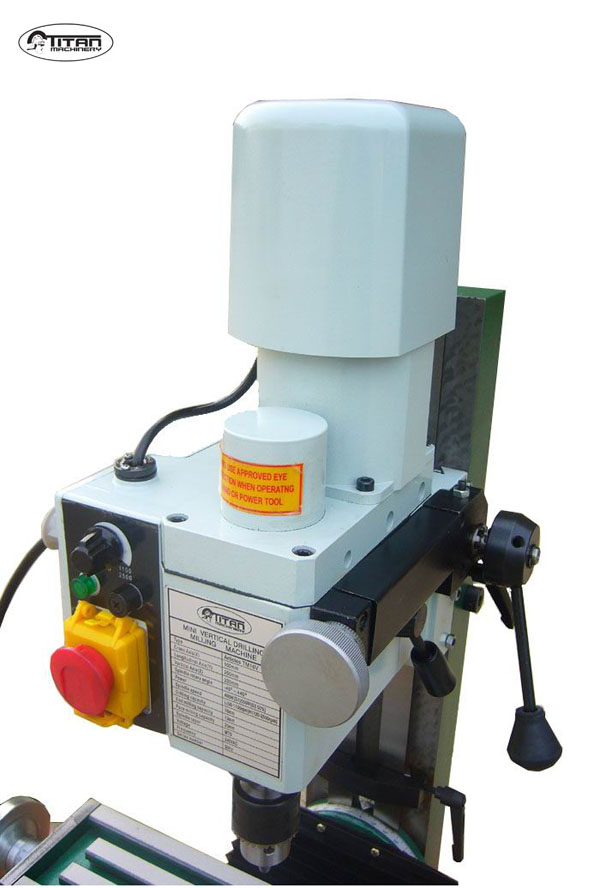

• High/low speed
• Forward/Reverse Switch!

machine specifications

• Spindle taper:                                                        MT3
• Table size:                                                            410mm x 112mm
• Table travel (longitudinal):                                       230mm
• Table travel (cross):                                               130mm
• Max. dist. spindle to table:                                      230mm
• Max. dist. spindle to column:                                   175mm
• Machine depth :                                                     490mm
• Machine height :                                                    790mm
• Machine height incl stand :                                      1640mm

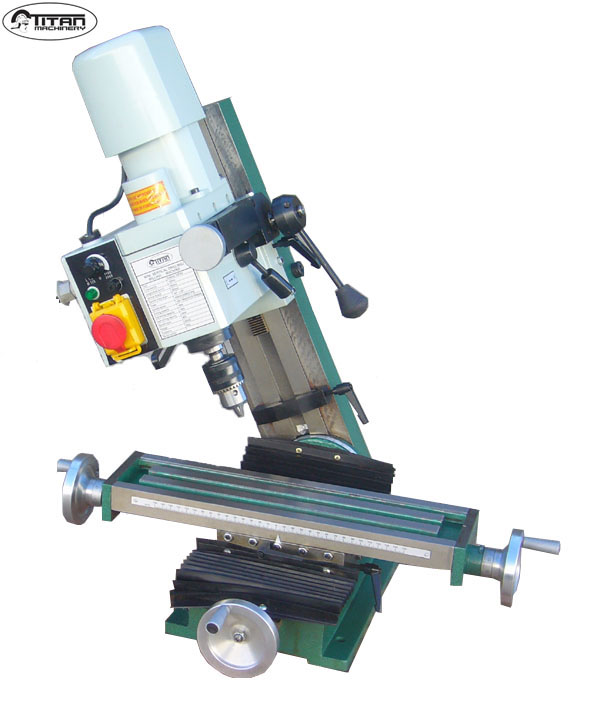

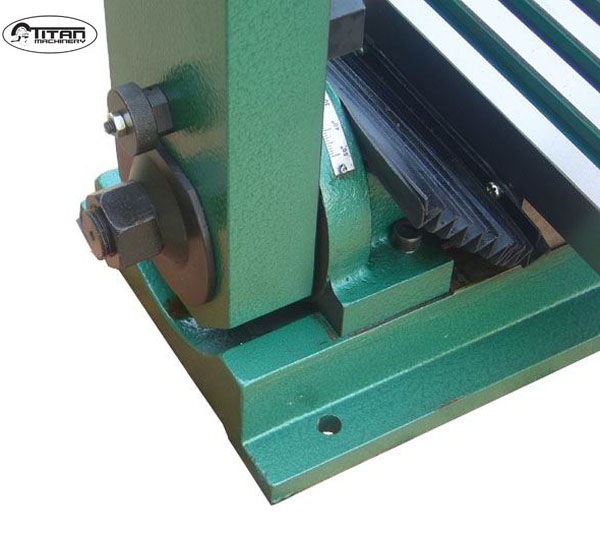

• Head tilt:                                                              45º both ways
• T-slots: 3 slots,                                                      10mm studs
• Range of speeds:                                                    0-2250 RPM
• Motor: 400 W DC,                                                   single-phase, 220V AC Power supply
• Approx shipping weight :                                         64kg
• Approx shipping size :                                             50x50x76cm

standard accessories

• Tool Box
• Spanners,oil bottle,allen keys
• Drill chuck 1-13mm
